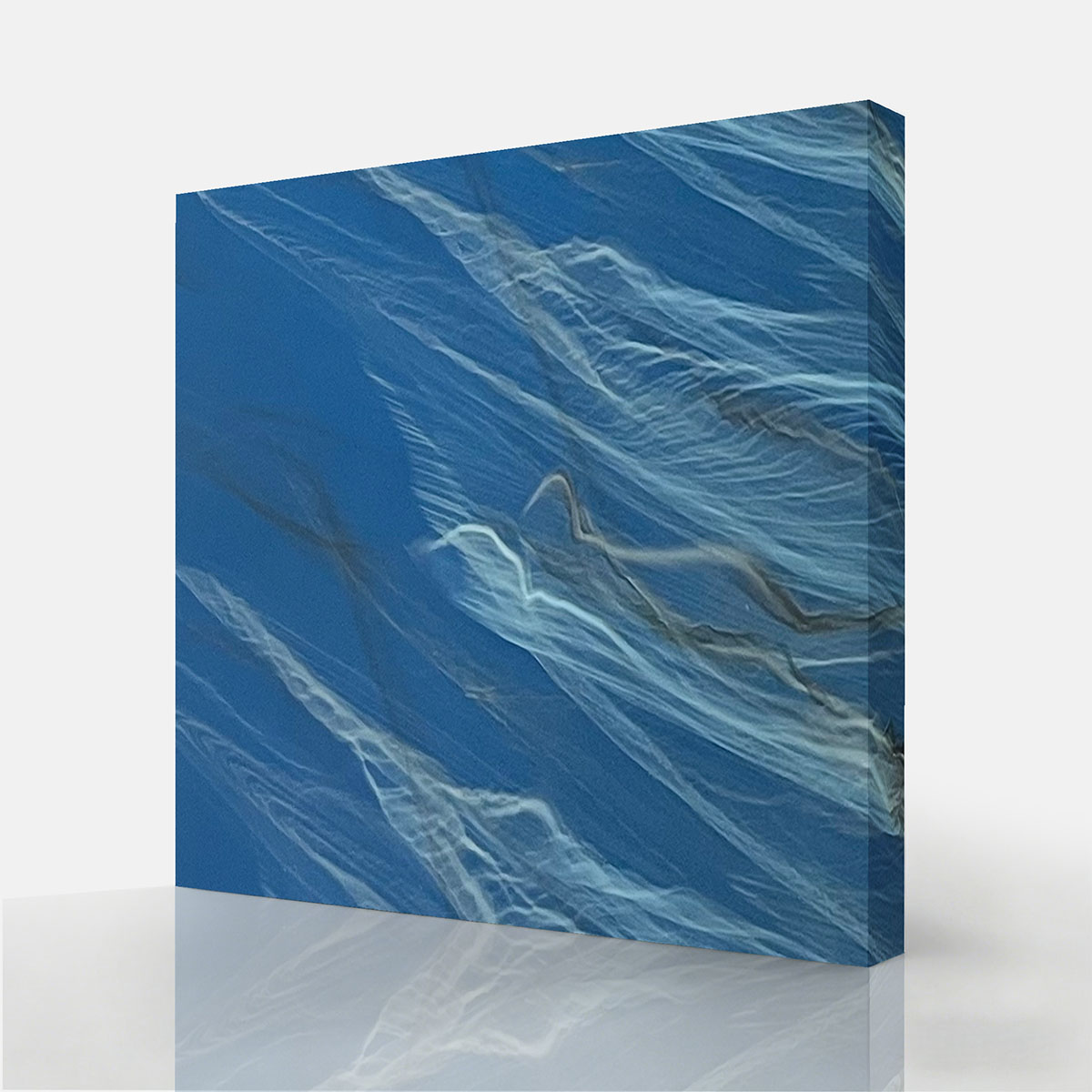

Xin Lan Yun is our main cloud board, which has beautiful artistic patterns. It can be made by two processes: casting and extrusion.
Advantages:
1. The extruded sheet boasts an unrivaled edge: it can be tailored to any size imaginable, offering unparalleled flexibility for your unique needs.

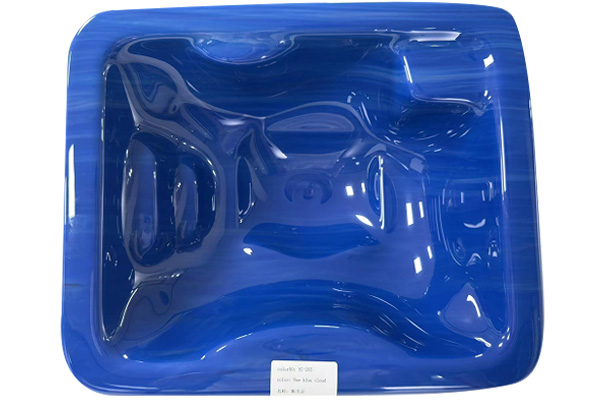

2. When it comes to secondary processing via thermal blister molding, our success rate hits an astonishing 99.99% – a near-flawless performance that guarantees reliability you can count on.
3. Its tensile strength outshines traditional acrylic by leaps and bounds, standing strong where others falter.
4. It also performs far better than traditional acrylic sheets in blister forming, achieving a more precise and thorough result.
5. And here’s the game-changer: our sheets can reach a staggering 3.9 M in width with virtually unlimited length. This isn’t just innovation – it’s a global exclusive, something no other manufacturer in the world can match.
| Cloud board specifications | |
| 1 | 2180*2180 |
| 2 | 2330*2330 |
| 3 | 2400*2400 |
| 4 | 2400*2400 |
| Inspection items | Single position | Test results |
| Tensile strength | MPa | 68.8 |
| Tensile fracture strain | % | 5.3 |
| Tensile elastic modulus | MPa | 3115 |
| Impact strength of simply supported beams without notches | kJ/m² | 17.1 |
| Vicat softening temperature (B50 | ℃ | 105 |
| Dimensional change (shrinkage rate) during heating | % | 1.9 |
| Test Items and Results | |||
| Number | Test Items | Results | |
| 1 | Gray card rating,Level | 5 | |
| 2 | Exterior(Xenon lamp aging 200h) | No chalking and cracking in appearance | |
| 3 | Izod notched impact strength kJ/m² | 0h | 8.4 |
| Xenon lamp aging 200h | 7.8 | ||
| 4 | (Pb),mg/kg | Not detected(<5) | |
| S | (Hg),mg/kg | Not detected(<5) | |
| 6 | (Cd),mg/kg | Not detected(<5) | |
| 7 | (Cr⁶+),mg/kg | Not detected(<5) | |
| 8 | (Polybrominated biphenyls),mg/kg | Not detected(<10) | |
| 9 | (Polybrominated DiphenylEther),mg/kg | Not detected(<10) | |
High-quality raw materials, strict production process, multiple international certifications
Factory direct sales, eliminating the middleman price increase.
Professional exporter, familiar with customs clearance standards of various countries, always on time
One-stop after-sales, quick response, 7*24 hours technical support
